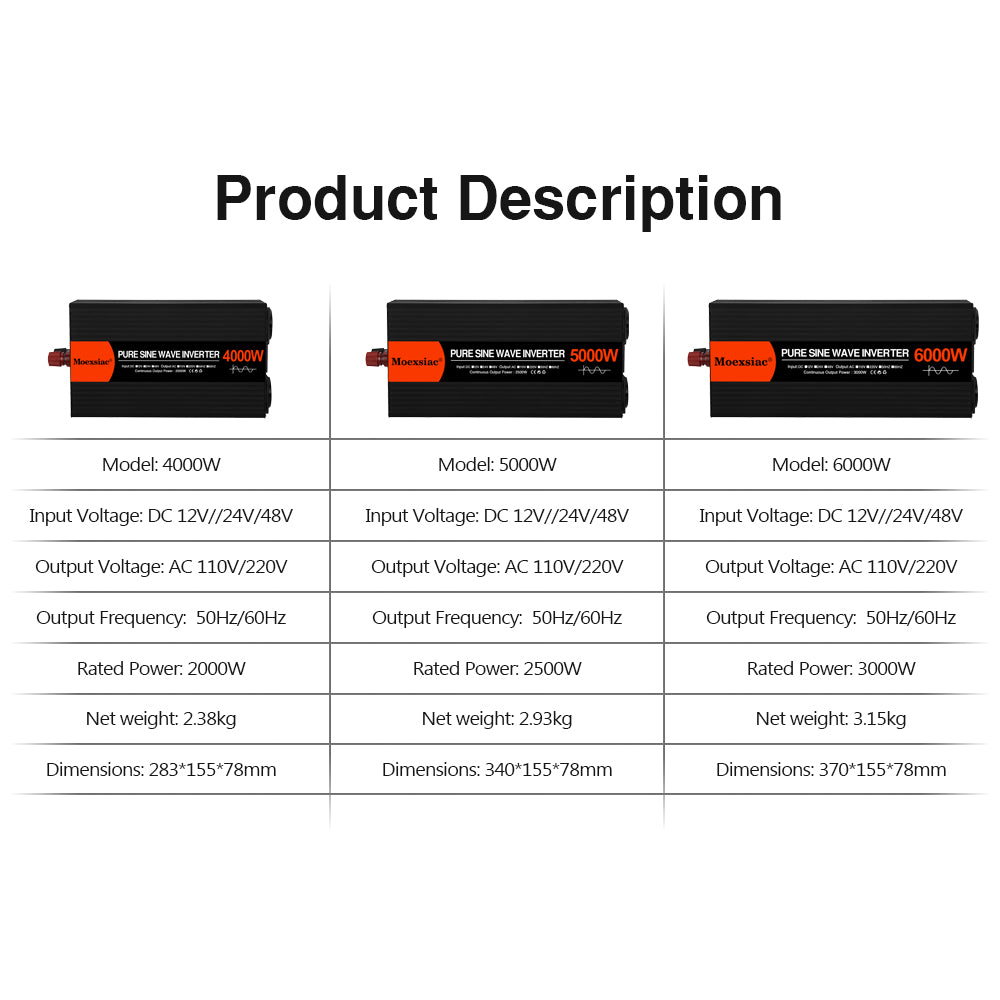

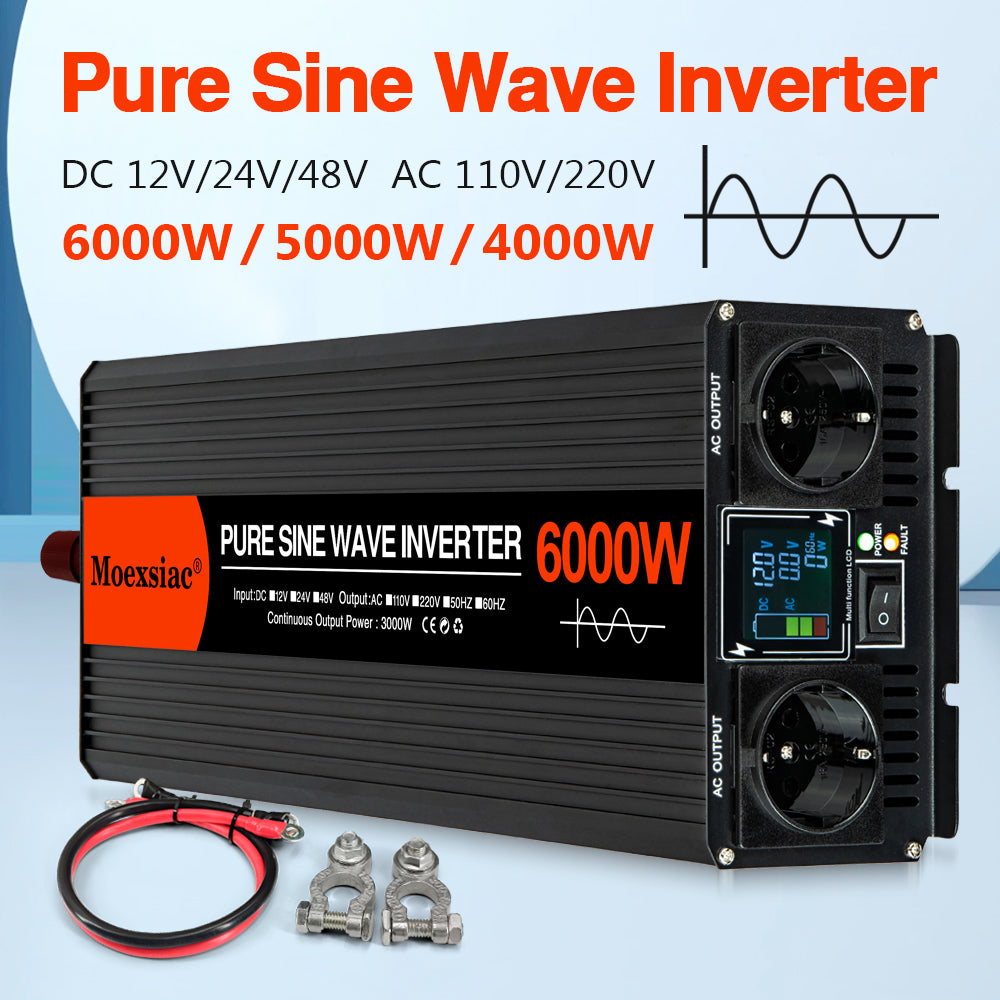

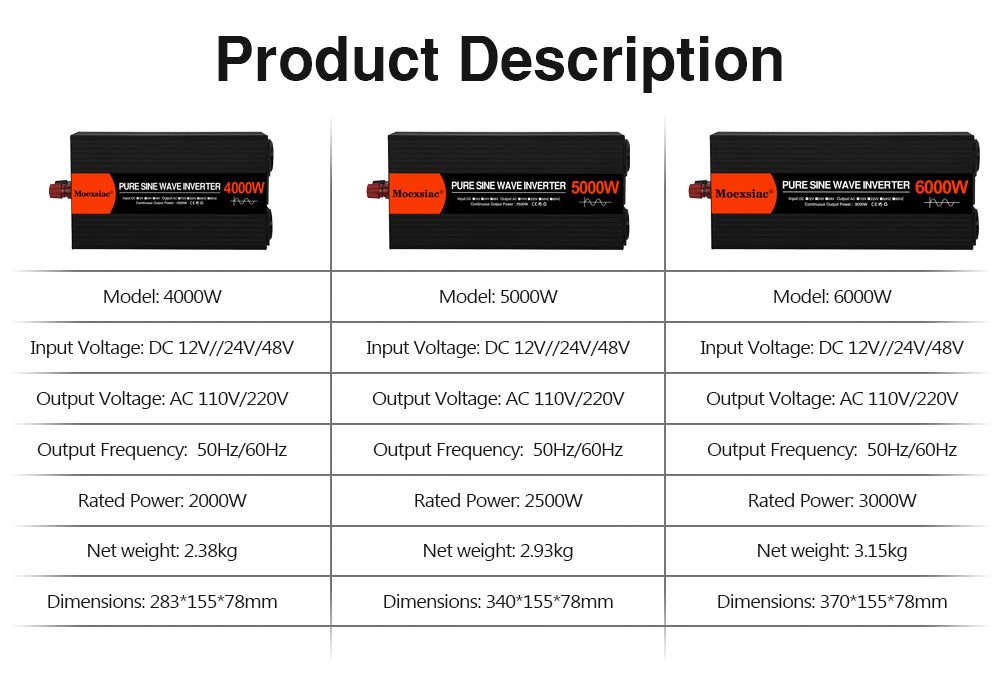

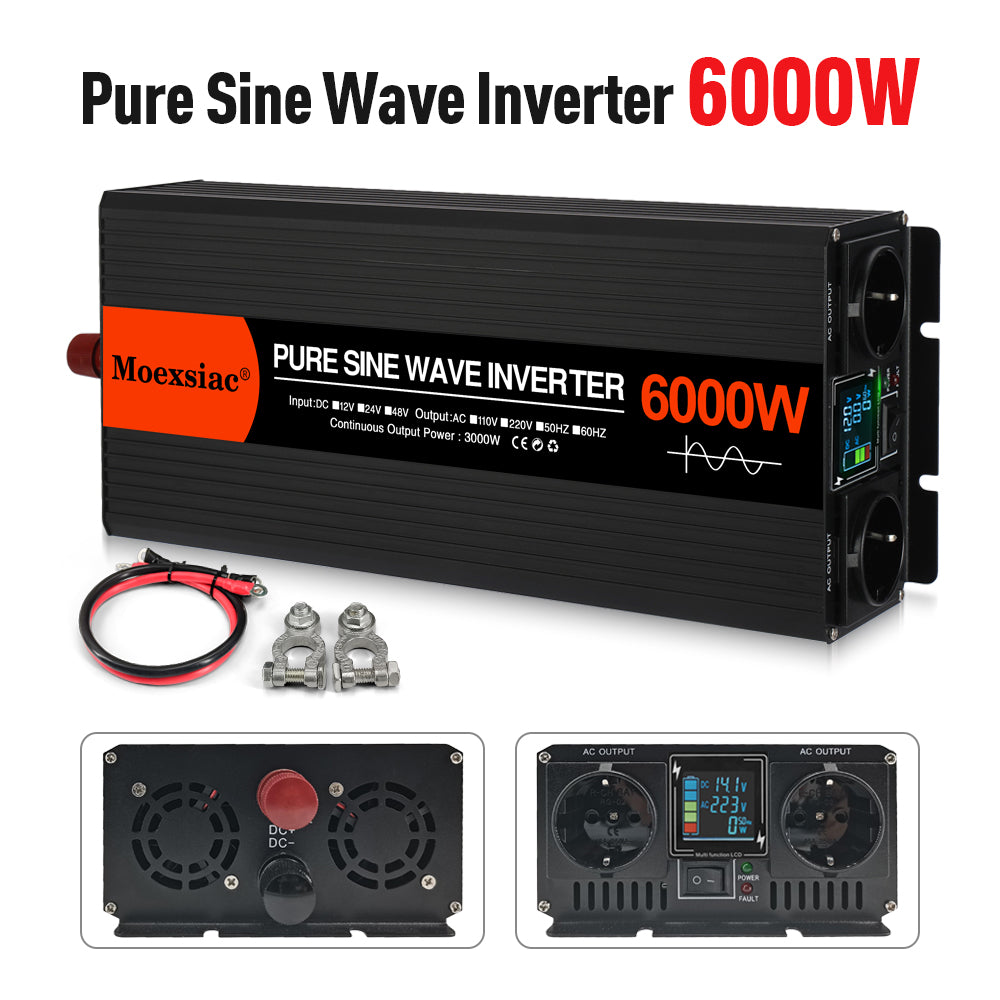

Specifications:
Type: Pure Sine Inverter

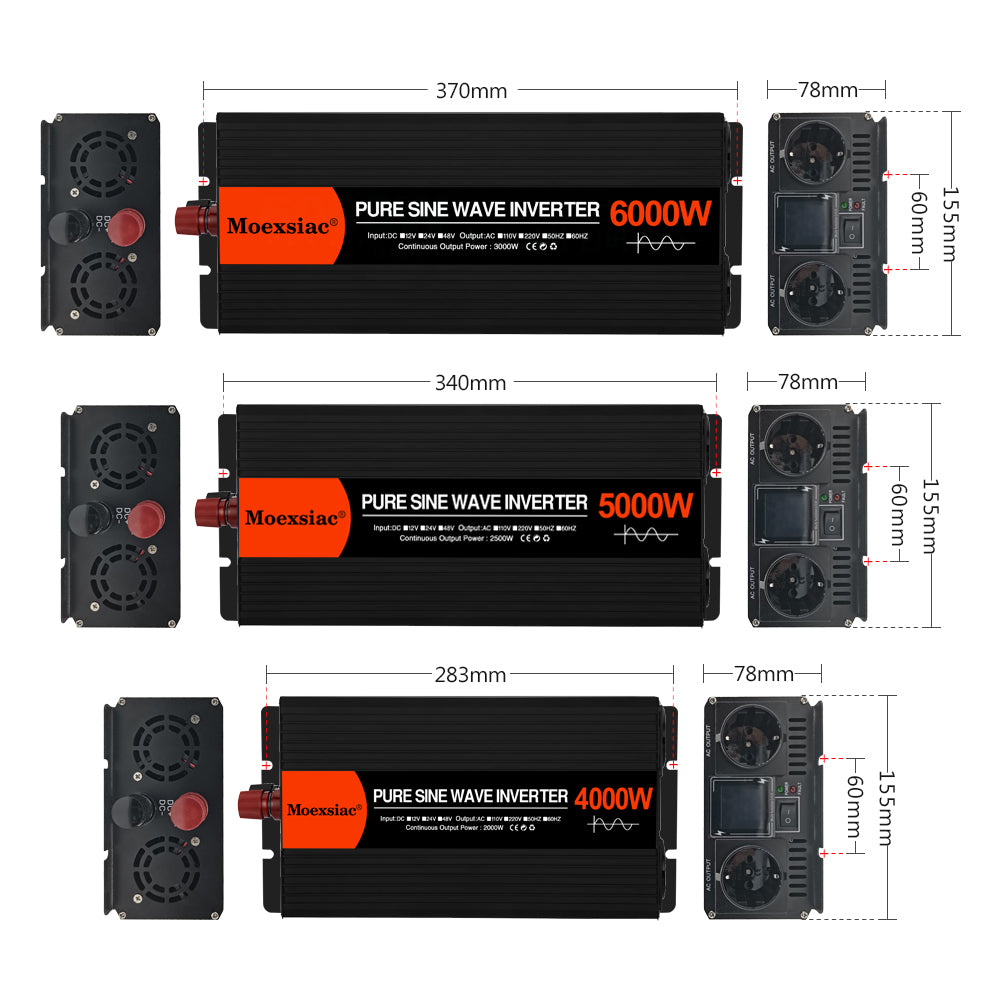

Model: 4000W / 5000W / 6000W

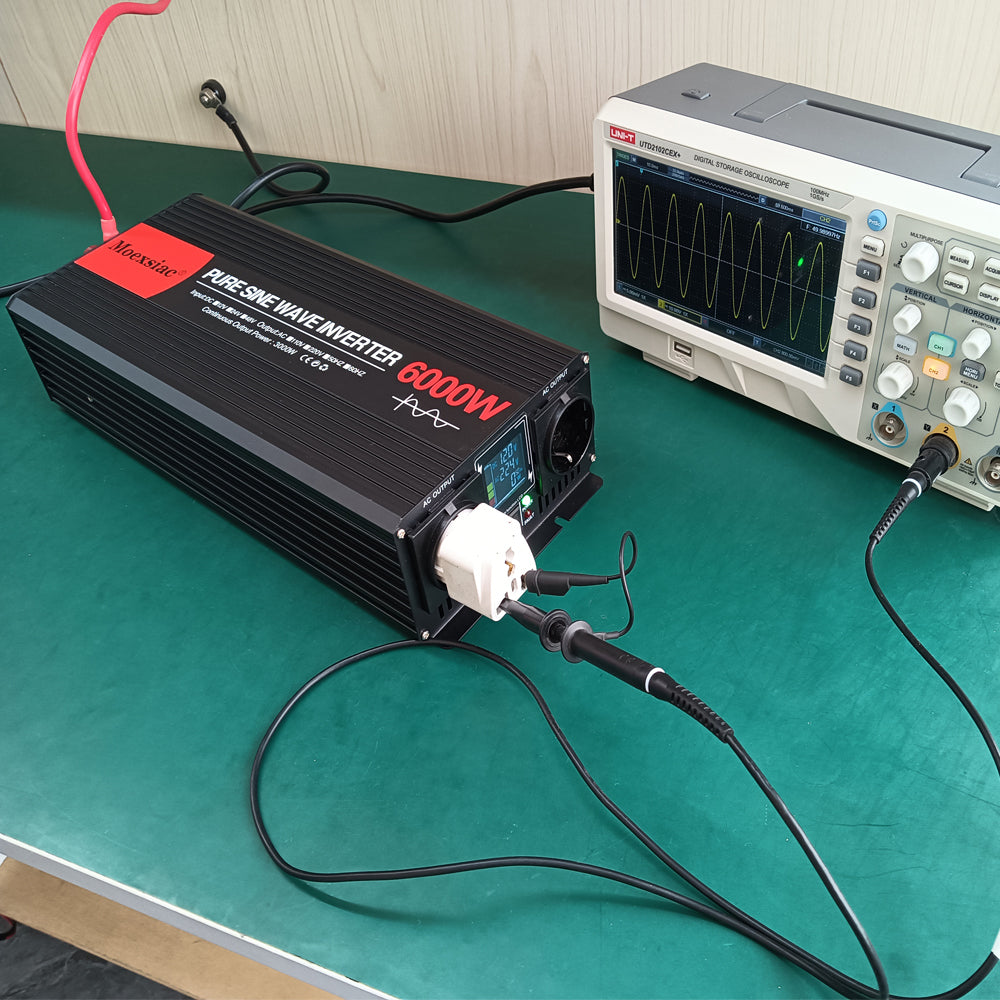

Output Waveform: Pure Sine Wave

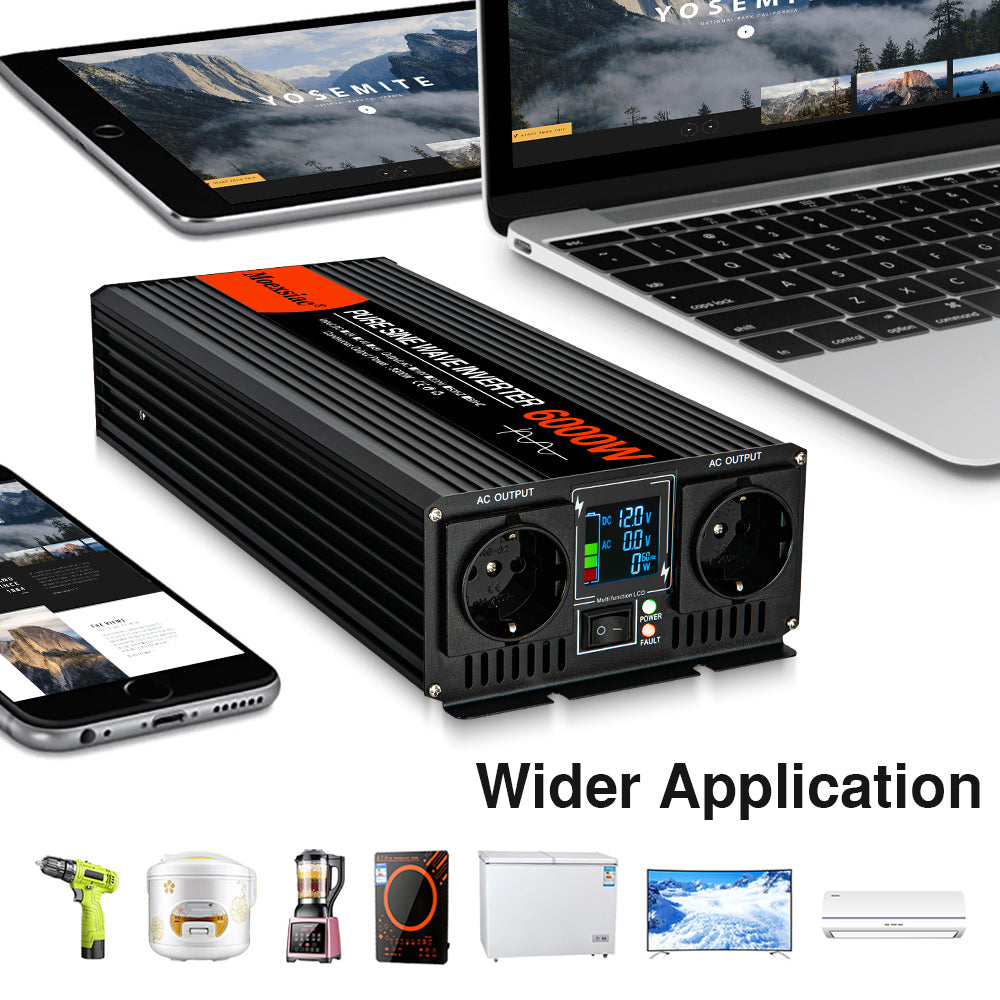

Socket Type: EU
Input Voltage: DC 12V / 24V / 48V
Output Voltage: AC 220V
Output Frequency: 50Hz / 60Hz
Rated Power: 2000W / 2500W / 3000W
Conversion Efficiency: 90%

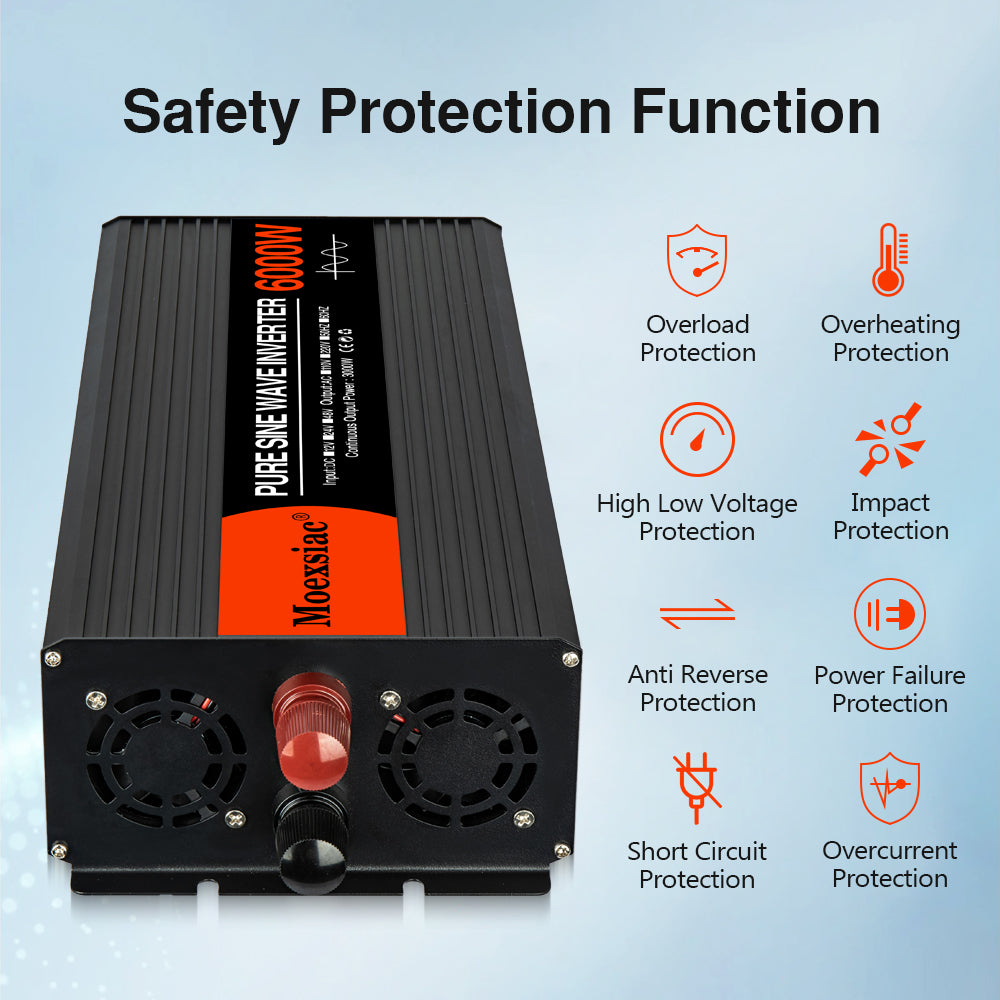

Protection Function 1: Over Temperature Protection
Protection Function 2: Low Voltage Protection
Protection Function 3: High Voltage Protection
Notice:
> 12V's inverter only can connect 12V's battery (Input voltage range about 10V to 15V)
> 24V's inverter only can connect 24V's battery (Input voltage range about 20V to 30V)
> 48V's inverter only can connect 48V's battery (Input voltage range about 40V to 60V)
> Don't connect the inverter to the household circuit
> Small common sense of electrical power. Inverter conversion efficiency about 90%. Rated power * Conversion efficiency = Actual power
No-load output current
No-load current at 12v
3000W(0.7A)
4000W(0.7A)
5000W(0.86A)
6000W(0.86A)
No-load current at 24v
3000W(0.4A)
4000W(0.4A)
5000W(0.5A)
6000W(0.5A)
No-load current at 48v
6000W(0.3A)
5000W (0.28A)
4000W (0.2A)
How to choose a suitable battery for inverter
Working time = U (voltage payment) × I (battery capacity) × 0.8 × 0.9 ÷ electrical power
Example: a 12V 50AH battery with a 220V 100W bulb
Working time=12Vx50AH×0.8×0.9÷100W=4.32(hours)
Note: 0.8 is the battery discharge coefficient (constant) 0.9 is the conversion efficiency of the inverter (constant)
How long it can be used is also related to the new and old performance of your battery
